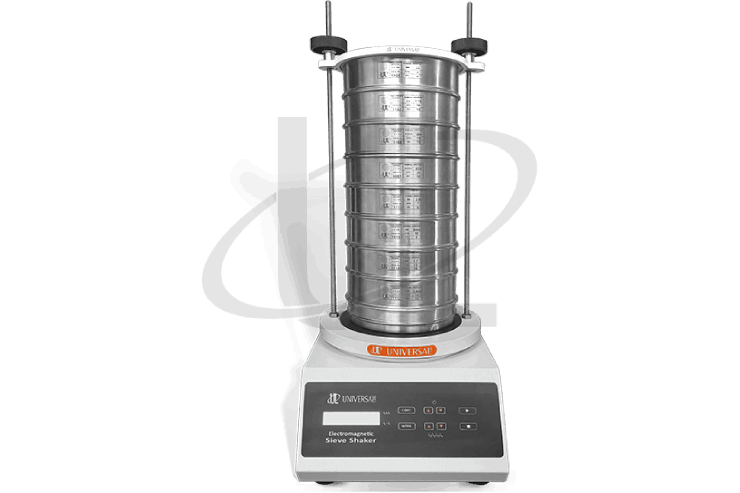

Electromagnetic Sieve Shaker

Enquiry Now

    Specifications

    • Ideal for particle size Analysis and Separation.
    • 20 x 2 LCD Display.
    • Continuous and Intermittent mode.
    • Intermittent Interval : 0.5 sec.
    • Max. capacity of 8 Sieves of 50mm ht + Receiver or 16 Sieves of 25mm ht + Receiver.
    • Suitable for Dry and Wet Sieve.
    • Power Range of 5 – 20 with increment of one digit.
    • Timer Range will be of 1-99min with ^ of one digit.
    • Amplitude Range from 0.5 to 2.0 with maximum load capacity.
    • 5kg Max Load capacity.
    • <71 dB Max Noise Level with full capacity.
    • 220 – 230 VAC 50Hz 600 VA Power Supply.
    • 5 Amp Fuse.
    • 320mm L x 400mm W x 381mm H
    • 50kg without Sieves Weight.
    • 20% – 70% Humidity.
    • Ambiance Temp. range from 15°C – 30°C.
